Introduction:

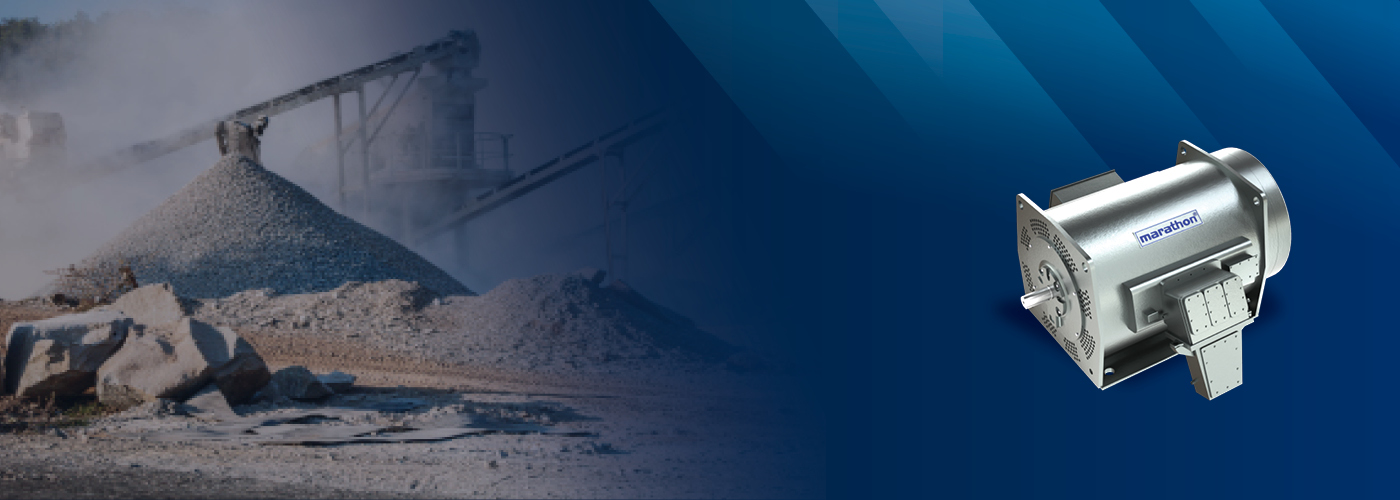

Introducing the TEEPAK TETV Motors High Voltage Induction Motors – robustly constructed with steel frames, these motors ensure durability and reliability. They feature a uniform internal cooling circuit for efficient heat dissipation, allowing them to perform consistently even in demanding conditions. Smaller ratings benefit from axial cooling, while larger ratings utilize both radial and axial ventilation for optimal cooling. The motors adhere to basic mounting dimensions as per industry standards, making installation easy and seamless. TEEPAK TETV Motors are designed to enhance productivity and meet the highest industry standards. Trust in their exceptional construction, uniform cooling circuit, and versatile ventilation options to elevate your industrial operations.
Features:
- Class ‘F’ insulation system, both Resin rich & Resin poor (VPI) varieties available.
- Rotors are dynamically balanced.
- Rotor bars are brazed with end rings by One Shot Brazing process.
- Environmentally friendly motors to meet all Drives
- Fault tested Phase Segregated Terminal box.
- RTD, BTD, Dial type Temperature indicator available.
- Separate Terminal Box available for Neutral point, RTD, and BTD termination purpose.
- Provision for Magnetic Slot Wedge to improve Efficiency, Power Factor and improve Electromagnetic noise.
- Provision for special Epoxy paint system.
Specifications:
- Frame: IEC 400 TO IEC 1000
- Power Rating: upto 4 MW
- Voltage: 3.3KV / 6.6KV
- Frequency: 50Hz +- 5%
- Pole: 2 to 14
- Degree of Protection: IP 55
- Ambient: 45 °C
Applications:
Pump, Compressor Drive, Fan, Blowers, Conveyor, paper plant, Crushers, Mills etc.
