Introduction:

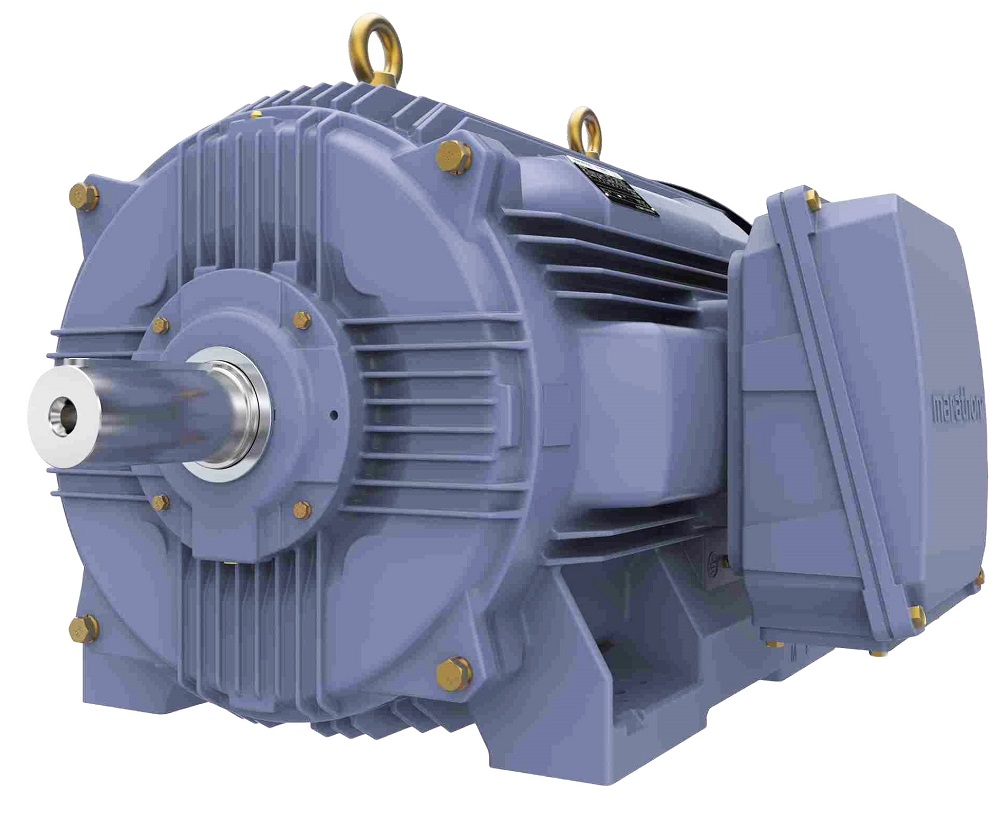

The TerraMAX QCA Series motors are IE4 efficient, totally enclosed fan cooled cast iron motors built on the TerraMAX low voltage global platform. QCA Series motors offer premium features for general industry applications while complying with industry and regulatory standards for performance and overall form, fit and function. The motors have robust construction based on careful design elements, accurate machining parameters, which allow the motors to meet the demanding requirement of various industrial applications, while offering super-premium efficiency to the market.
Features:
- Confirms to IEC 60034
- Class F insulation and Class B rise
- Bi-directional fan
- Suitable for Variable Torque Duty (10:1)
- Captive screws for Terminal Box cover
Specification:
- Frame Sizes: IEC 80 - IEC 355
- Power Rating: 0.37 kW to 355 kW
- Power Supply: AC 3 Phase 415V, 50Hz
- Pole: 2 to 6
- Protection: IP55 (IS 4691)
- Insulation Class: Class F with temperature rise limited to class B
- Mounting: All standard mountings B3, B5, B35, V1 (B14 and B34 for IEC 80-132)
- Ambient 40°C
Applications:
Crane & hoist, Material Handling, Machine tools, Pumps, Fans, Compressors, Conveyors, Packing equipment
