Introduction:

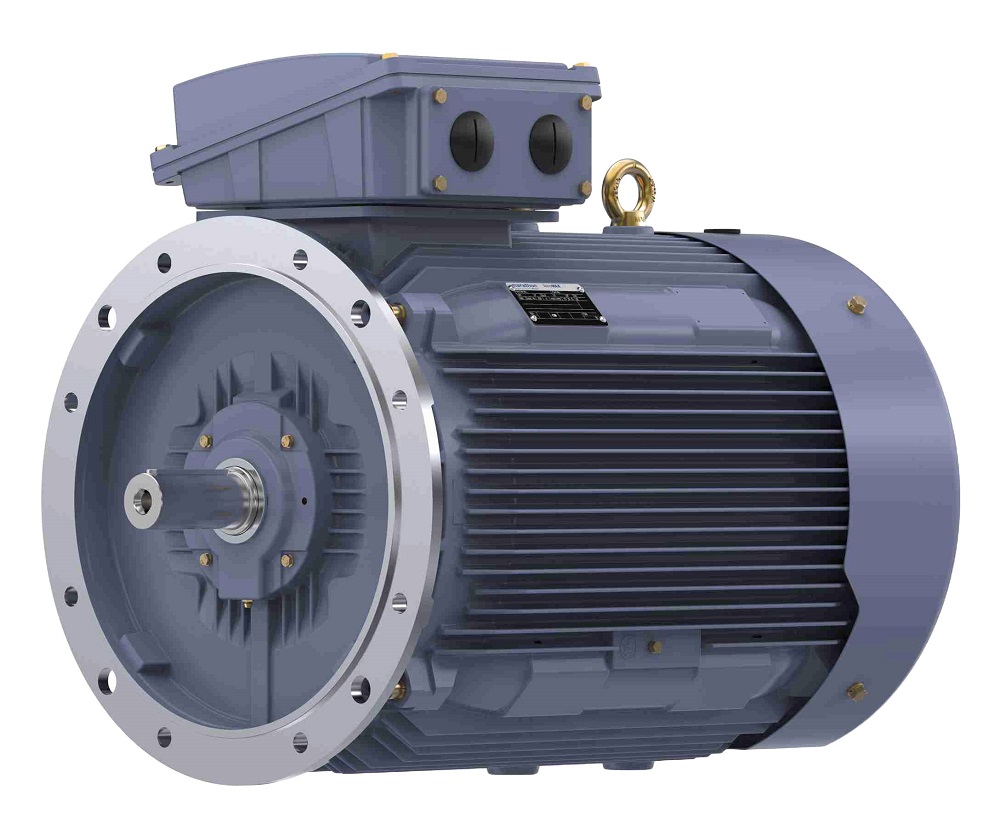

TCA series motors, built on the global low voltage TerraMAX motor platform, are IE3 efficiency totally enclosed fan cooled motors suitable for general industry applications. The TCA series motors inherit the state of the art premium features of TerraMAX motor platform, while delivering energy savings for the industry. The rugged construction of the TCA series motors meets the industry requirement for all tough and demanding applications.
Features:
- Confirms to IEC 60034
- Suitable for Variable Torque Duty (10:1)
- Captive screws for the Terminal Box cover
Specification:
- Frame Sizes: IEC 80 - IEC 355
- Power Rating: 0.37 kW to 375 kW
- Power Supply: AC 3 Phase 415V, 50Hz
- Pole: 2 to 8
- Protection: IP55 (IS 4691)
- Insulation Class: Class F with
- temperature rise limited to class B
- Ambient 40°C
Applications:
Pumps, Machine tools, Crane & hoist, Agitator, Fans, Material handling, Textile Machinery, Packing Equipment, Compressors, Plastic extruder, Stone Processing, Machinery, Oil Expeller.
