Introduction:

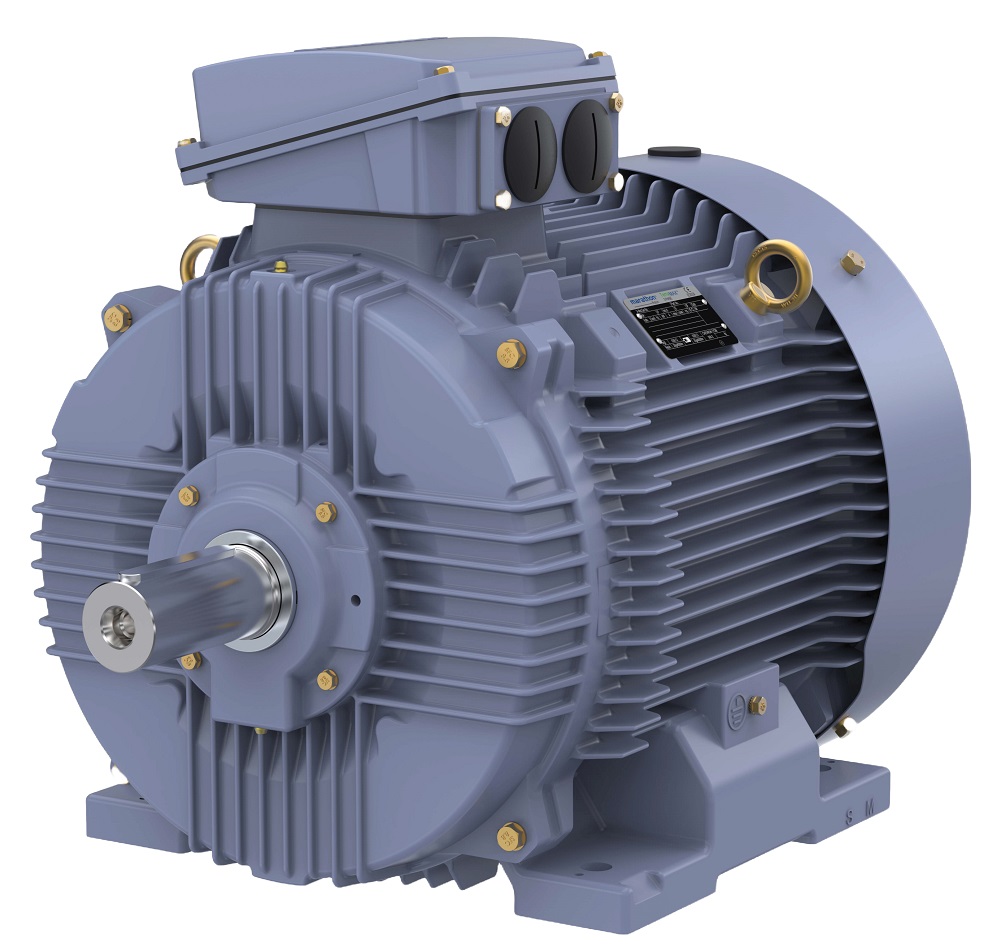

TerraMAX SCA Series motors are IE2 efficient Totally Enclosed Fan Cooled (TEFC) cast iron motors built on the TerraMAX low voltage motor platform. The SCA series motors inherit the state-of-the-art premium features of the TerraMAX motor platform family. The rugged construction of SCA motors aims to meet the general industry requirement for every tough and demanding application.
Features:
- Confirms to IEC 60034
- Bi-directional fan
- Suitable for variable torque duty (10:1)
- Captive screws for Terminal Box cover
Specifications:
- Frame Sizes: IEC®* 80 - IEC 355
- Power Rating: 0.37 kW to 375 kW
- Power Supply: AC 3 Phase 415V, 50Hz
- Pole: 2 to 8
- Protection: IP55 (IS 4691)
- Insulation Class: Class F with temperature rise limited to class B
- Ambient 50°C
- All standard mountings B3, B5, B35, V1 ( B14 and B34 for IEC 80-132)
Applications:
Pumps, Machine tools, Crane & hoist, Agitator, Fans, Material handling, Textile Machinery, Packing Equipment, Compressors, Plastic extruder, Stone Processing Machinery, Oil Expeller
