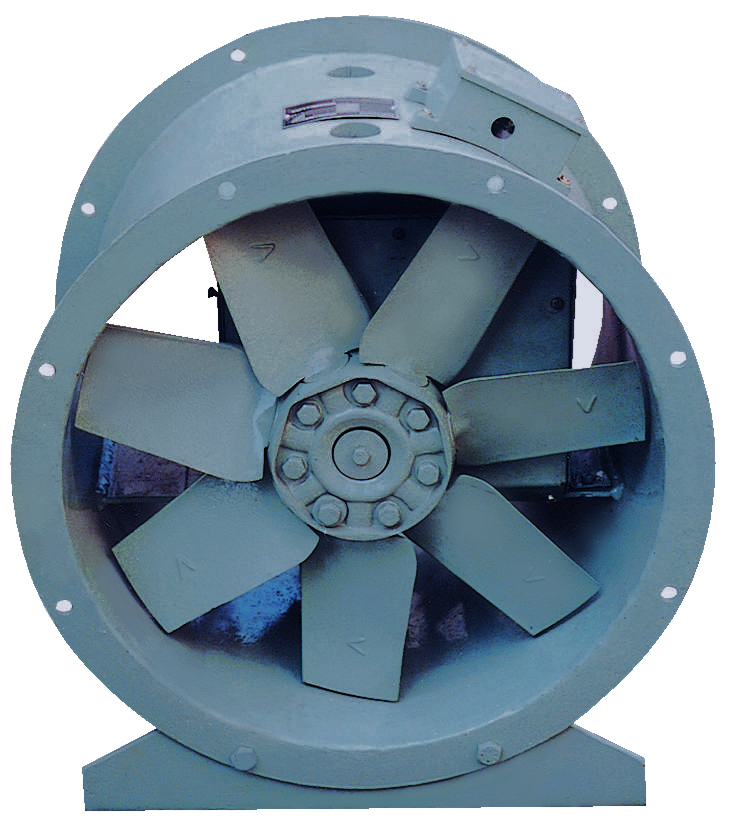

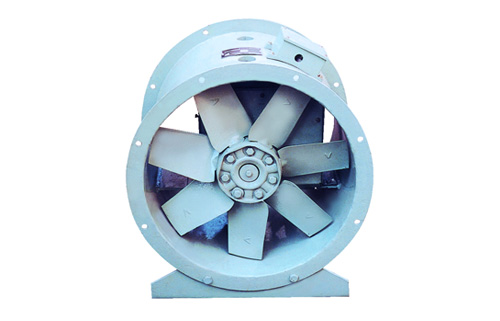

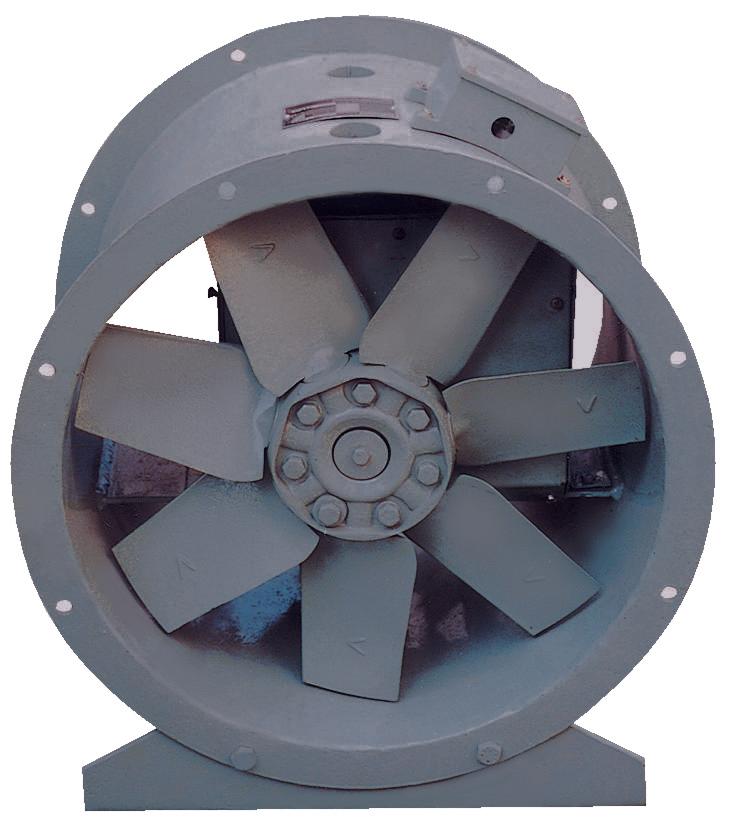

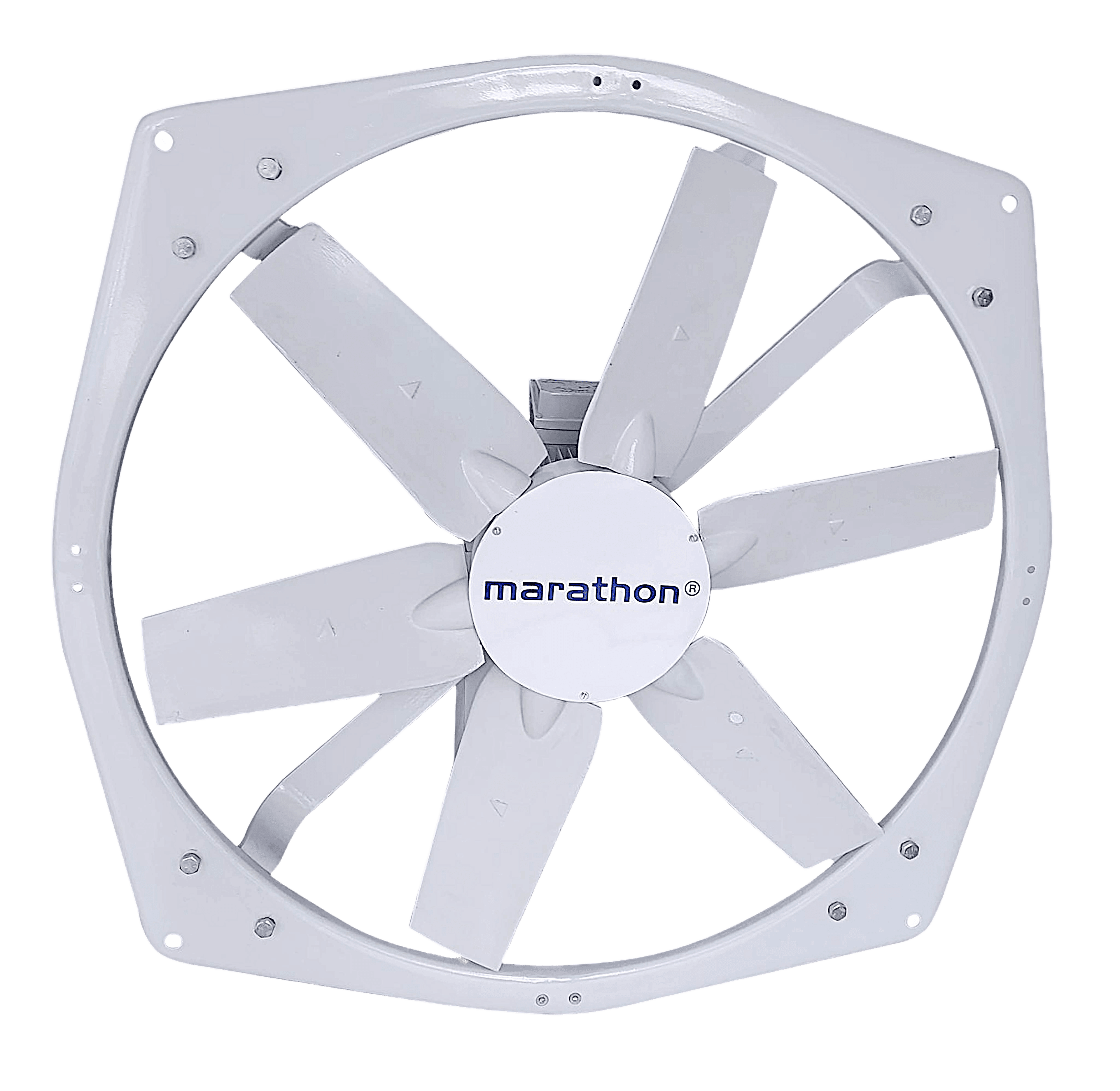

Axial flow fans are available in wide range of combinations from 12" to 75" diameter fitted with motors from 0.37 kW to 110 kW in 2 Pole, 4 Pole, 6 Pole and 8 Pole variants. Motors are suitable for 415 volts ±10%, 50 Hz ±5%, 3 Phase Power Supply, as per IS:12615, which are in-house manufactured ensuring better fit and proper matching. Fans are available in single phase version also. Axial Flow Fans are capable of handling up to 300000 m3/ hr air delivery and static pressure up to 110. Further pressure can be developed with multiple staging of fans.
Types
The types of Axial Flow Fan include the following.

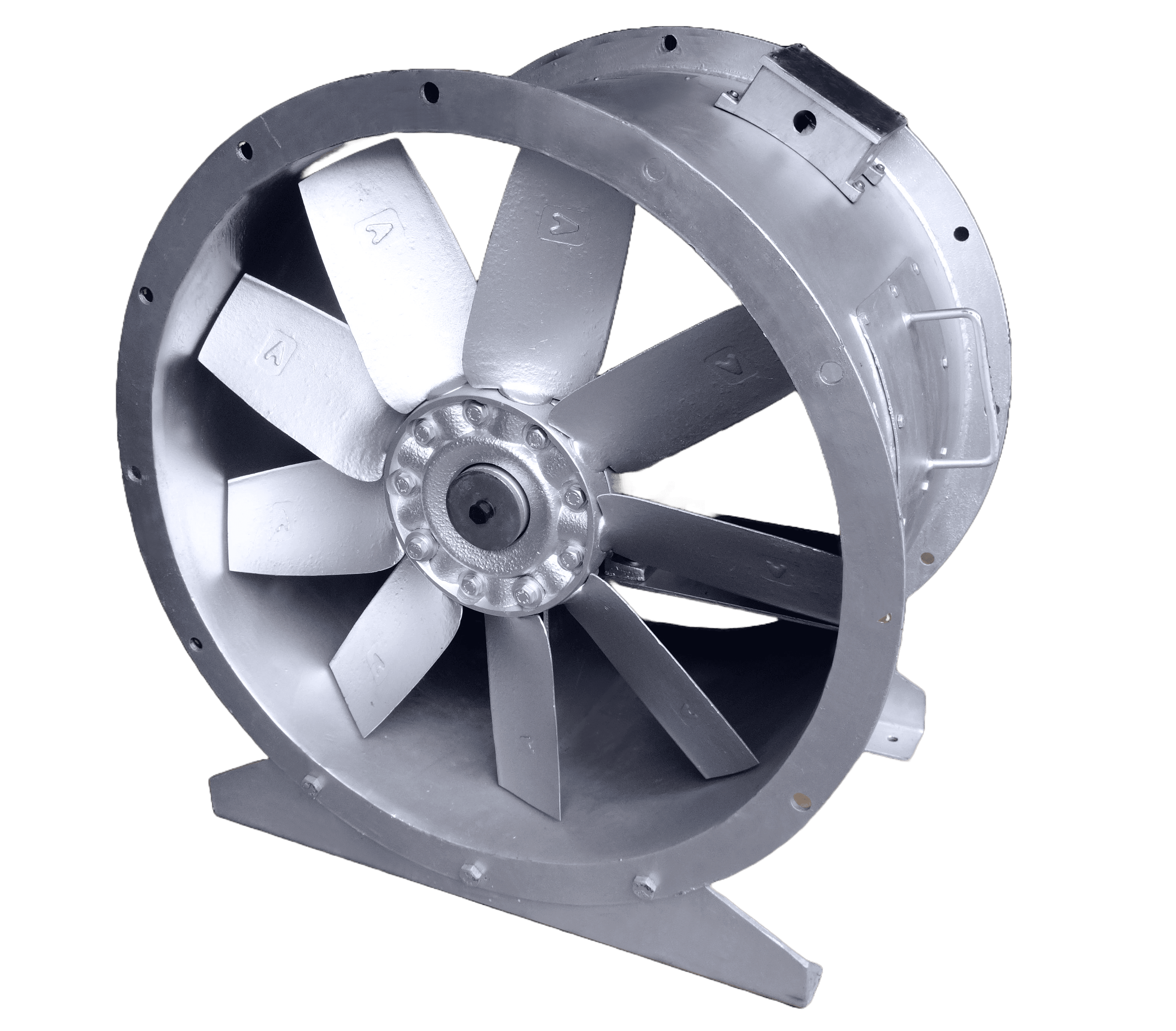

Bifurcated Fans
Marathon® Electric Bifurcated Fans are available from sizes 19" to 75". These fans are used to handle hazardous air, where motors are kept outside the air stream.
Flame Proof Fans
Marathon Electric Flame Proof Axial Fans are available from sizes 15" to 75" and are used extensively in Fire Hazard Areas.

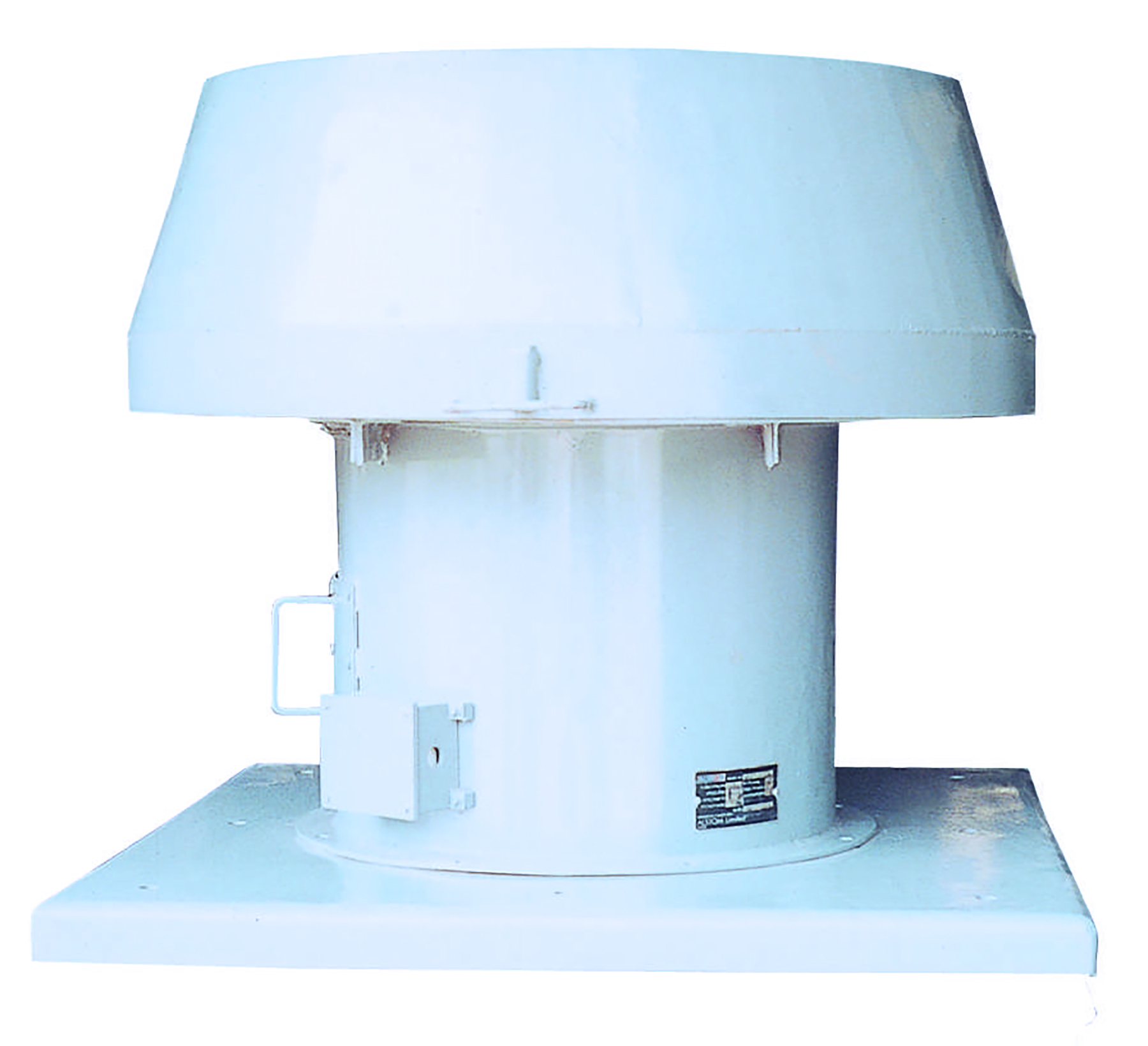

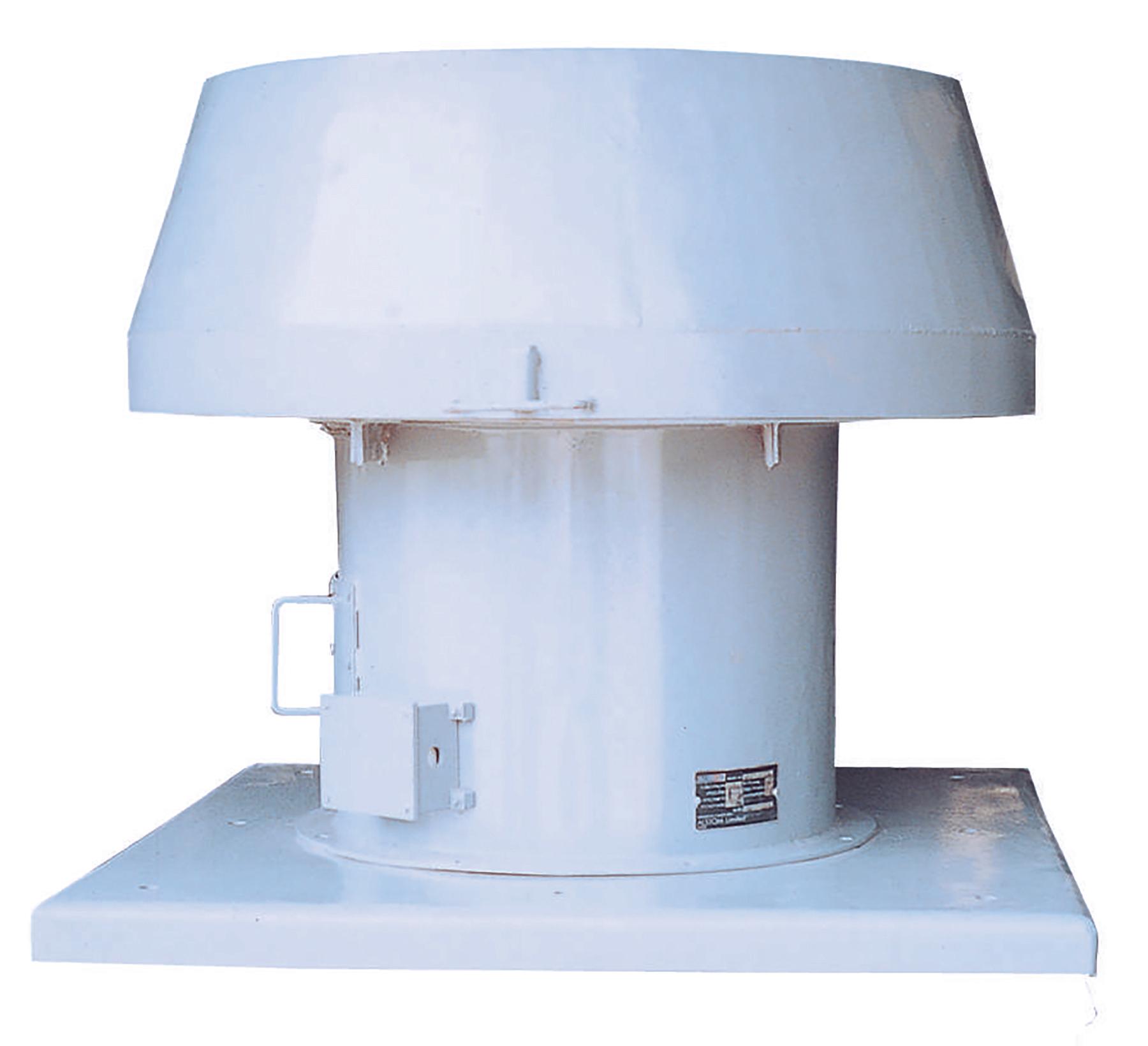

Roof Extractor Unit
Marathon Electric Roof Extractor Units are available from sizes 19" to 60", fitted with Hood and Bottom Plate. These units are used on the roof to extract and exhaust contaminated air.

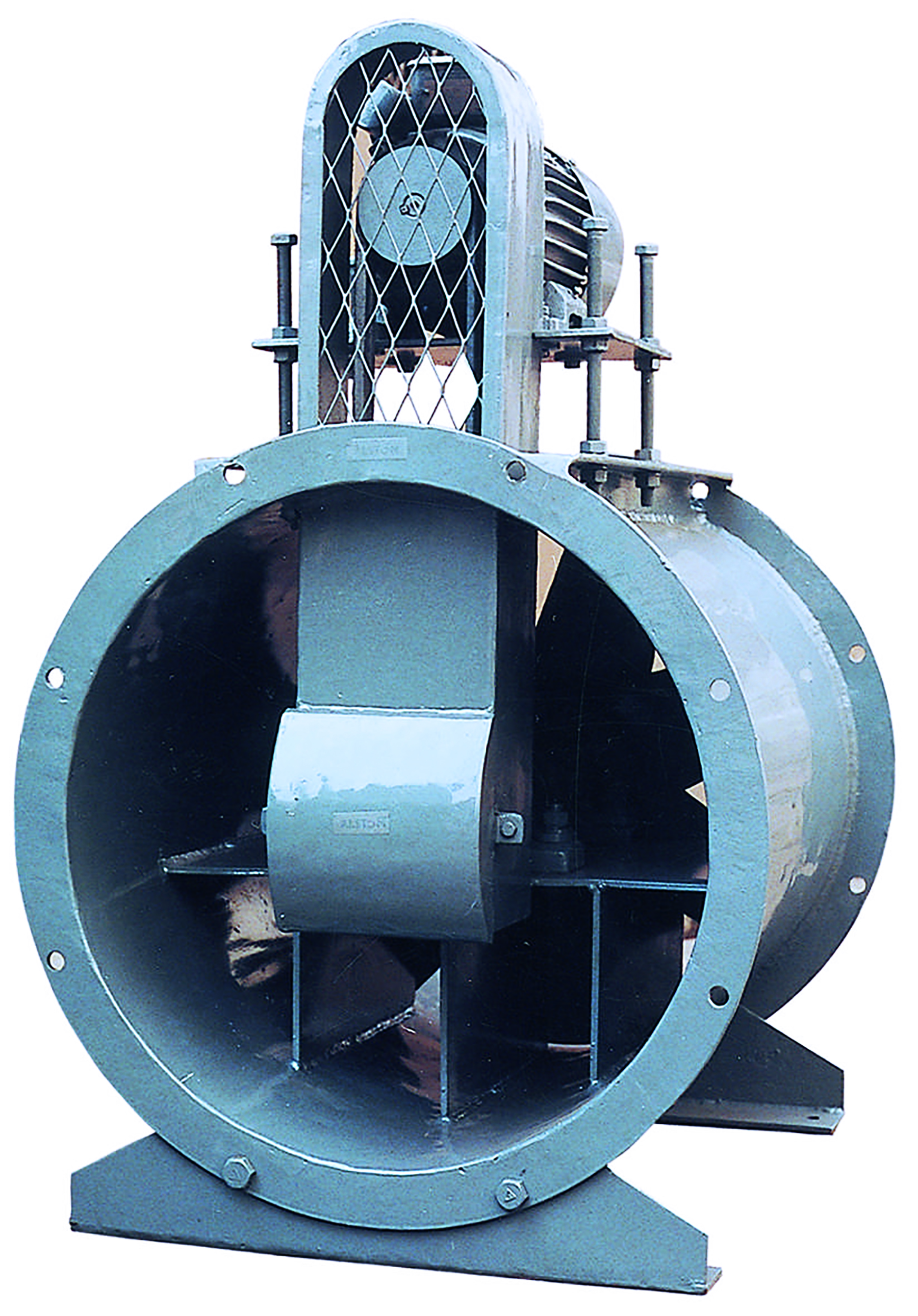

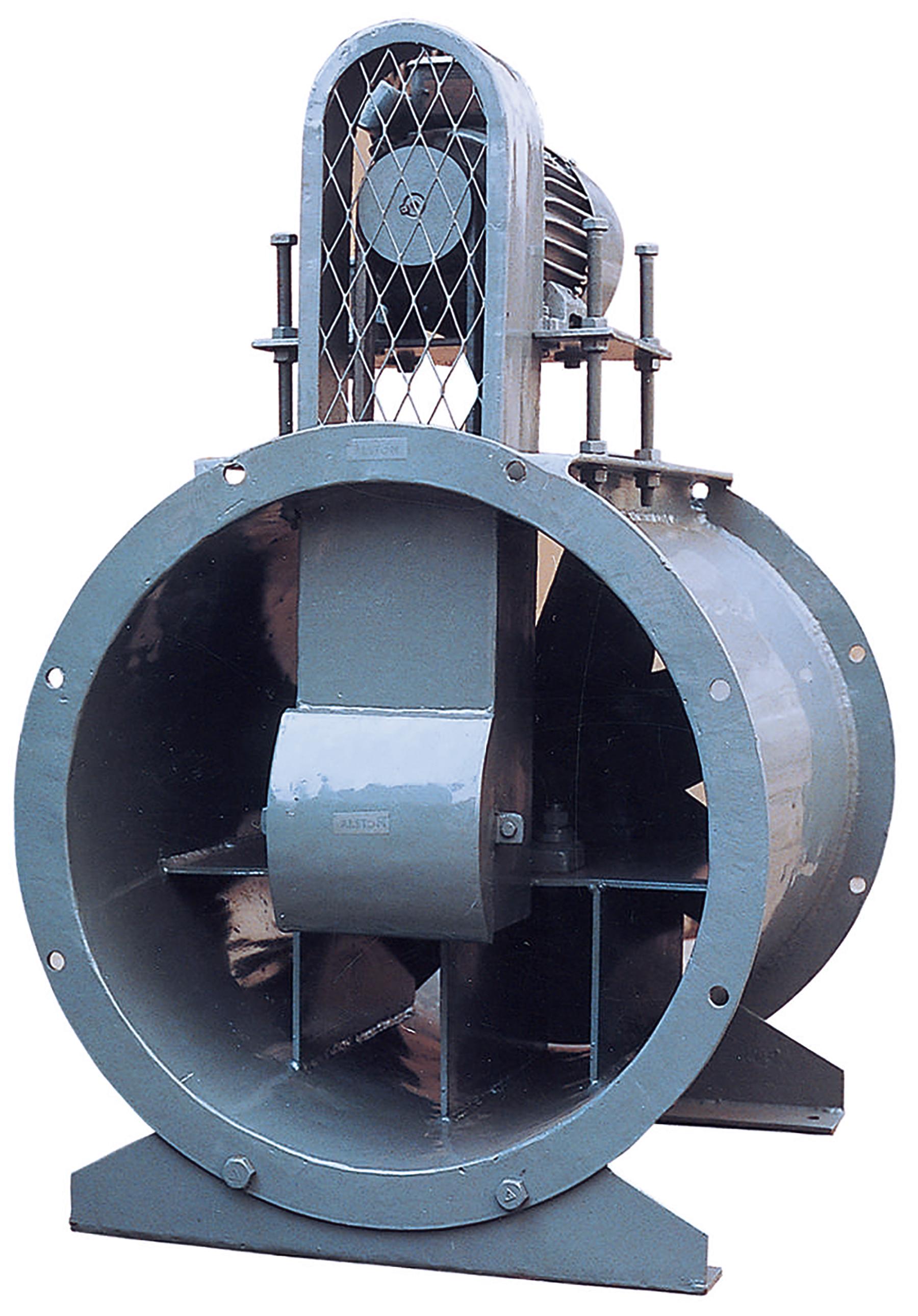

Belt Driven Fan
Marathon Electric Belt Driven Fans are available from sizes 19" to 75". Fans are driven by belt and pulley arrangement. The motor is located outside the air stream.

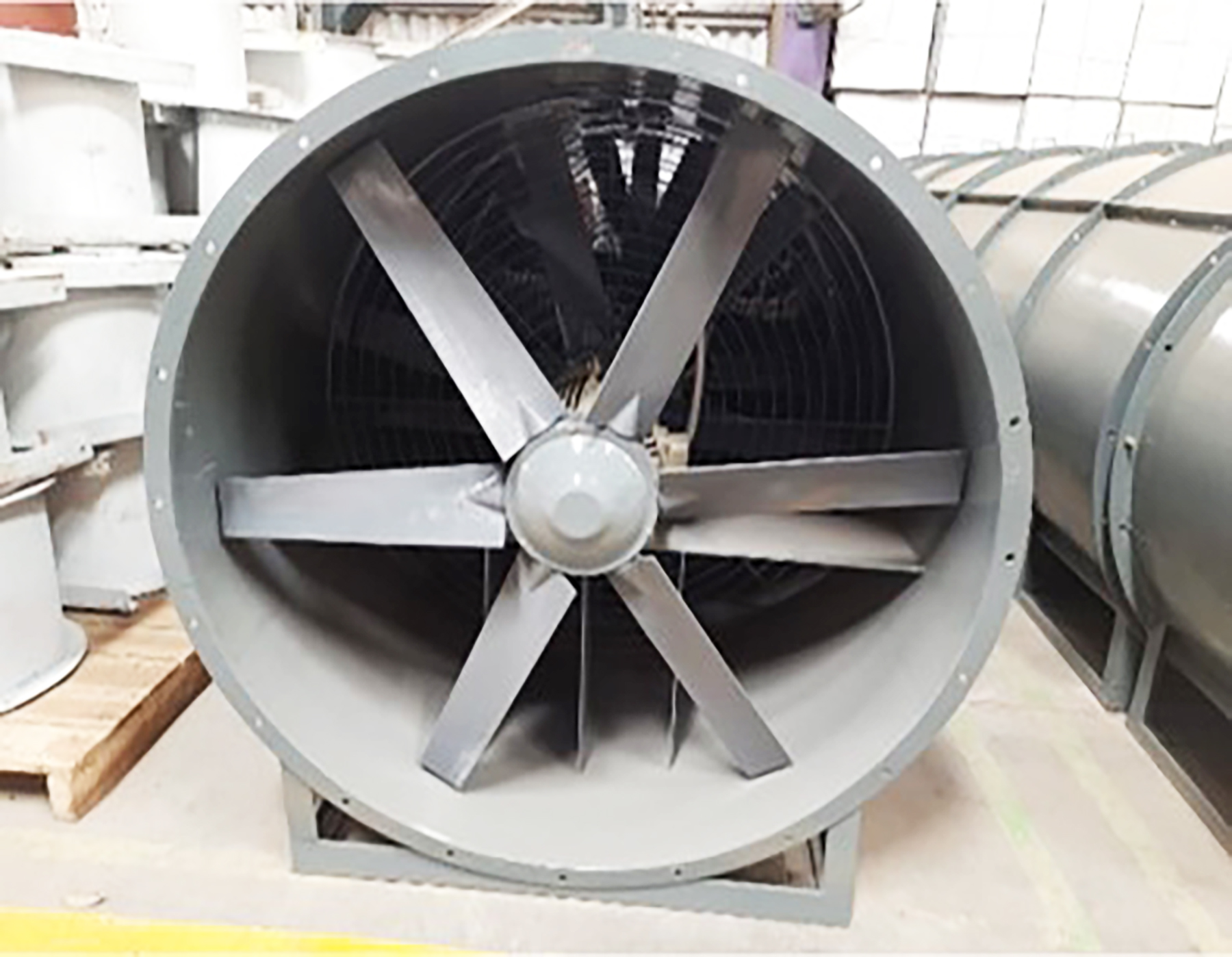

Smoke-spill Fans
- This Fan is suitable for 250°C for 2 hrs operation.
- Air Flow – 3,300 – 80,000 m3/hr
- Static Pressure – 5mm to 100 mm wg
- Sweep – 12” to 48”
- Fan Performance – IS 3588 These fans are used for ventilation systems in case of fire when the polluted air needs to be ventilated outside with help of fans. These fans are placed on the opening to the environment which extracts smoke and releases it in the environment. It can be used for daily ventilation, as well as, smoke extraction in case of fire (suitable for 250°C for 2 Hours operation.
Tea Industry Fans
We have been supplying Withering Fans to various Tea companies all over India for more than 15 years. WITHERING is the first and foremost step involved in tea manufacture. Withering is the process of removal of moisture from green tea leaves by blowing hot air over the leaves in a withering trough. The current of air performs two functions – 1) Conveyance of hot air to promote evaporation and 2) Carrying away the water vapour through a bed of green leaves.
Considering the above need and operating condition, we developed a series of Fans which are best suited for the Tea Industry.
Transformer Cooling Fans
This fan is primarily developed for Transformer cooling purposes and are widely used by reputed manufacturers like ABB®*, Transformer and Rectifier®*, TBEA®*, etc. These fans operate mainly on Free Air Delivery condition.
