Introduction:

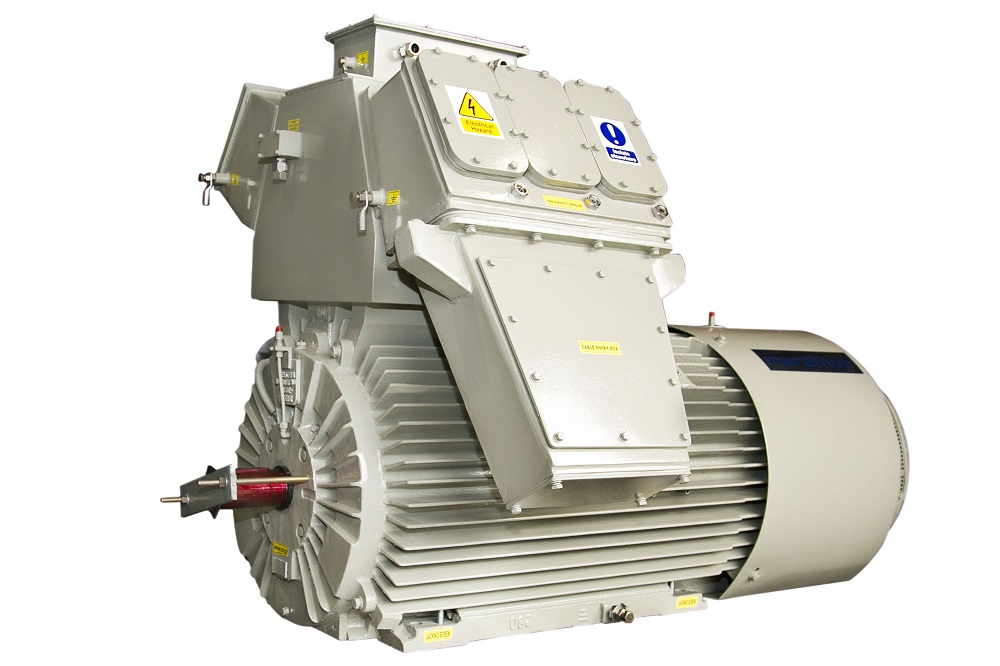

High Voltage TEFC Flowpak motors are part of an integrated range of induction machines, manufactured in a modern production facility.
Flowpak is a range of totally enclosed fan-cooled cage induction motors available horizontally or vertically mounted for supply voltages up to 6.6 kV, and outputs up to 800 kW.
Flowpak range has a frame size with shaft center heights of 280, 315, 355, 400, 450 & 500 mm. Standard designs cover 2 to 10 pole speeds, and all sizes of speeds are available with grease-lubricated bearings.
Features:
- High efficiency - upto 96%
- Low noise level (MSPL) - upto 85 dB (A) at 1 mt. distance with silence arrangements.
- Low starting current - upto 550% for 4 Pole.
- High torque - 80% Voltage Starting on load "square low" drives.
- High flexibility – a detailed study of market requirements.
- Low Cost - Internationally Competitive.
Specifications:
- Frame: IEC 280 to IEC 560
- Power Rating: upto 1.5 MW
- Voltage: 3.3KV / 6.6KV / 11KV
- Frequency: 50Hz +- 5%
- Pole: 2 to 14
- Increase safety EX ec /Ex na
Applications:
Pump, Compressor Drive, Fan, blower, Conveyor & dredging application.
