Introduction:

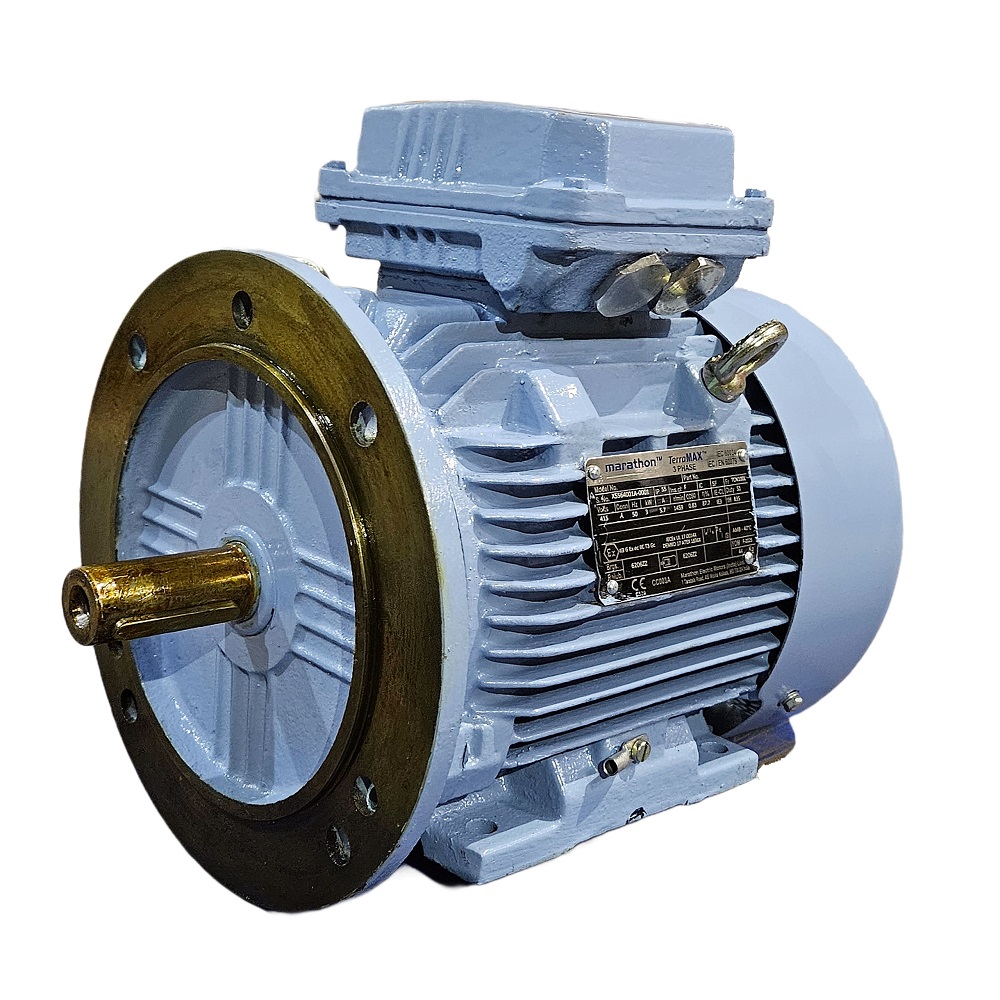

MARATHON Electric presents CHALLENGER Series TEFC Squirrel cage motors with excellent product features and outstanding performance parameters. The design of this range is based on advanced technical know-how and the level of excellence associated with this international company manufacturing motors in India for more than half a century. Stringent quality control procedures are adopted at each stage of production as a part of the company policy to ensure that each motor is manufactured to the requisite quality standard ensuring customer satisfaction.
Features:
Confirms to IEC 60079-0/ IEC 60079-15/ EN 60079-0/ EN 60079-306
Class F insulation and Class B rise
Bi-directional fan
Protection IP55
Temperature Class T3
Specifications:
Frame Sizes: IEC 80 - IEC 355
Power Rating: 0.37 kW to 375 kW
Power Supply: AC 3 Phase 415V, 50Hz
Pole: 2 to 8
Protection: IP55 (IS 4691)
Insulation Class: Class F with temperature rise limited to class
Special features available on demand: Brake, Force cooling, encoder mounting, Multi-speed, Type Ex ec, Higher pole 10/12, Intermittent duty
Applications:
Pumps, Machine tools, Crane & hoist, Agitator, Fans, Material handling, Textile Machinery, Packing Equipment, Compressors, Plastic extruder, Stone Processing Machinery, Oil Expeller
